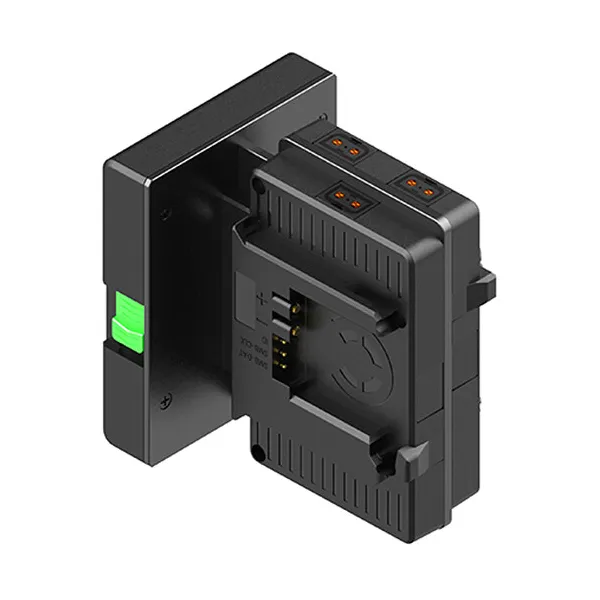

The Core SWX Hotswap Sharkfin Adaptor B Mount Battery enables you to power your B-mount camera, light, or accessory continuously using two B-mount batteries. The sharkfin design mounts two batteries side by side, enabling you to remove a depleted battery while leaving the remaining battery connected, resulting in no downtime. This plate incorporates three D-Tap output ports for powering accessories. The plate accepts CoreSWX Helix batteries or third-party 14V B-mount batteries.

Each D-Tap output provides unregulated 11 to 17 VDC simultaneous output, and the B-mount input/output to the device is unregulated 11 to 34 VDC. When using Helix batteries with this plate mounted onto a Helix battery plate, you can output dual voltage 11 to 17 and 22 to 34 VDC.

Compatibility

14V B-mount batteries

CoreSWX Helix battery packs

CoreSWX Helix battery plate

Sharkfin Design

Side-by-side sharkfin dual-battery plate design

Hot Swappable

Camera remains running when swapping out a depleted battery and a second battery is mounted

D-Tap Outputs

Use the three integrated D-Tap outputs to power additional accessories

• B-Mount Hot Swap/Sharkfin Plate

• For B-Mount Cameras and Gear

• 3 x D-Tap 11 to 17 VDC Accessory Outputs

• 11 to 34 VDC Input/Output

• Accepts Helix and 14V B-Mount Batteries

• Unregulated Power Output
