Roland SDI To HDMI Converter

Conversion Of Video And Audio Signals From Sdi Input To HDMI Output

Roland's new video converters address the demand for high-quality, lossless video and audio converters for live/post-production as well as installed systems. They include the Roland VC-1-HS (HDMI to SDI), VC-1-SH (SDI to HDMI), VC-1-DL (Bi-directional SDI/HDMI with audio/video delay and frame sync) and VC-1-SC (Up/Down/Cross Scan Converter to/from SDI/HDMI).

Features:

SDI to HDMI Conversion

Lossless Image Conversion

3G (Level A&B) /HD/ SD SDI

HDCP Support

VC-1 RCS, PC/MAC Control Application

Selectable Channel for Embedded/De-Embedded Audio

The VC-1 Video Converter series

The VC-1 Video Converter series provides uncompromising picture quality by maintaining the video characteristics of the original signal with rich-blacks and super-whites. There are no interlacing artifacts or other conversion or signal errors sometimes found with other video converters. The VC-1 series also features an on-board re-clocker to compensate for attenuation of SDI signals carried over long distances. The VC-1 series also supports both level A and B 3G-SDI, letting you connect a variety of higher quality SDI sources.

The VC-1 series is HDCP compliant allowing you to convert or pass-through HDCP signals with the exception of any SDI output. The VC-1-DL additionally enables the HDCP signal to be delayed. Selectable audio embedding and de-embedding let you route different audio sources to or from video devices. Digital AES/EBU input and output signals are supporting ensuring high-quality audio signals can be maintained through the signal flow.

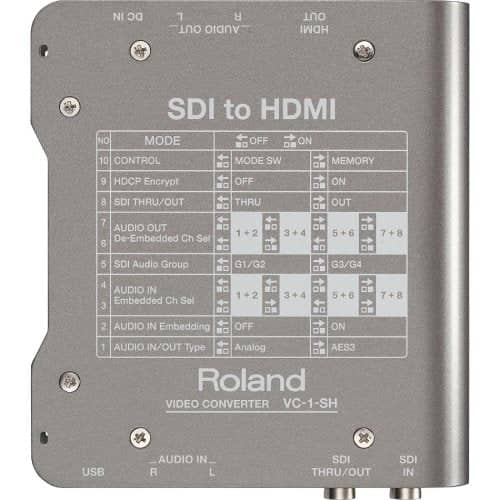

Roland VC-1-SH

The cost of SDI monitoring sometimes can be prohibitive for certain applications. The VC-1-SH converter allows you to convert an SDI signal to HDMI, providing a more cost-effective monitoring solution. This converter is also complimentary to the Roland V-40HD multi-format video mixer when you want to use an SDI camera as an input to the mixer.
